A treating system can appear stable for days or weeks, then a downstream analyzer begins reporting hydrogen sulfide where there should be little or none. That event is known as H2S breakthrough. For operators asking what is H2S breakthrough, the practical answer is straightforward: it is the point at which a treatment system no longer removes H2S to the required outlet specification.
Breakthrough is not just an analytical result. It can signal an approaching safety exposure, corrosion risk, off-spec sales gas or product, odor event, permit issue, or interruption to downstream processing. The right response depends on the treatment method, inlet conditions, and speed of the increase, but every breakthrough should be treated as an operational condition with a cause to identify.
What Is H2S Breakthrough?
H2S breakthrough occurs when hydrogen sulfide passes through a scavenger, adsorption bed, amine unit, biological system, or other treatment process and appears at the outlet above the allowable concentration. In a fixed-bed system, it typically means the active reaction or adsorption zone has moved through the vessel and reached the outlet end of the media bed. In a liquid scavenger program, it may indicate that the chemical dose, contact time, injection point, or mixing energy is no longer sufficient for the actual H2S load.
The outlet specification is application-specific. A pipeline-quality gas stream may require extremely low H2S concentrations, while a facility protecting equipment or controlling odor may operate to a different target. That distinction matters because a system can be functioning in a general sense while still failing to meet a critical downstream requirement.
Breakthrough is also not always a clean, permanent step change. Some systems show a gradual outlet rise as capacity is consumed. Others experience intermittent H2S excursions tied to flow swings, slugging, temperature changes, changing gas composition, or variable sour-fluid production. A short-duration spike can still be consequential if it reaches a compressor, gathering line, storage tank, flare system, or occupied work area.
Why H2S Breakthrough Happens
The most common cause is exhausted treatment capacity. Every scavenger chemistry and solid media has a finite ability to react with, bind, or capture sulfur compounds. As the available capacity is used, the treatment front moves through the system. Once that front reaches the outlet, H2S concentration rises.
Capacity alone, however, rarely explains the full field picture. Treatment performance depends on the relationship between inlet H2S concentration, total flow, pressure, temperature, moisture, contaminants, residence time, and the required outlet specification. A system sized for a steady inlet condition can break through early when sour gas concentration rises or production volume increases.

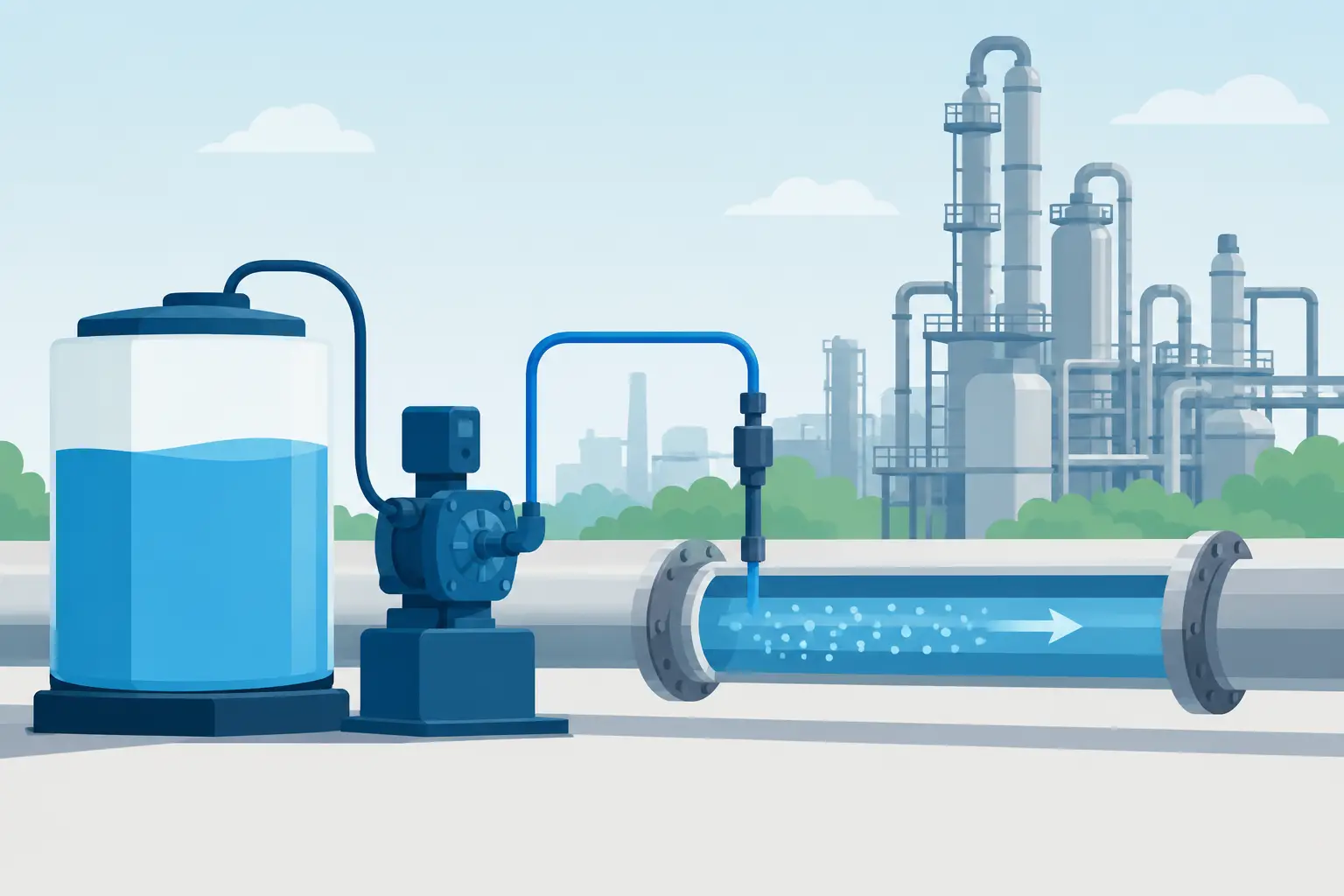

In liquid treatment applications, inadequate contact is a frequent contributor. Chemical injected into a line needs sufficient dispersion, mixing, and reaction time before the treated stream reaches the measurement point or downstream asset. Injection upstream of a poorly mixed section, into a multiphase flow regime, or too close to the point of use can produce apparent breakthrough even when chemical consumption is not unusually high.
Fixed-bed systems have their own operational vulnerabilities. Channeling can allow part of the gas stream to bypass active media. Poor flow distribution, bed settling, liquid carryover, fouling, compaction, and incorrect vessel loading can all reduce effective bed utilization. The result is premature breakthrough – capacity remains in part of the vessel, but the process stream is no longer contacting it effectively.
Other sulfur species can complicate the diagnosis. Mercaptans, carbonyl sulfide, sulfur dioxide, oxygen, hydrocarbons, amines, and process chemicals may affect scavenger demand, reaction behavior, analyzer response, or media life. A treatment program designed around only the average H2S reading may underperform when the complete stream composition changes.
Breakthrough Versus an H2S Measurement Problem
Before declaring a treatment failure, confirm the data. H2S analyzers and sampling systems require appropriate calibration, maintenance, sample conditioning, heat tracing where needed, and representative sample locations. Condensate, water, particulate matter, pressure reduction, sample line adsorption, and dead legs can distort readings.
A useful first step is to compare the downstream result with a validated grab sample or a second measurement method. Check both inlet and outlet measurements, then review timing. If the outlet increase follows a documented inlet souring event, higher throughput period, injection interruption, or vessel pressure change, the process explanation becomes more likely.
Do not dismiss a credible high reading simply because the treatment unit looks normal. Many breakthrough events begin with a small but repeatable trend. Waiting for a dramatic increase can turn a manageable adjustment into off-spec production or an unplanned changeout.
How to Respond When H2S Breakthrough Occurs
The immediate priority is to protect people, equipment, and downstream operations. Follow site-specific safety procedures, verify personal and area H2S monitoring, and assess whether the outlet stream must be diverted, curtailed, isolated, or routed through backup treatment. The correct action depends on facility design and the severity of the excursion.
From a treatment standpoint, operators should determine whether the issue is capacity, contact, chemistry, mechanical integrity, or measurement. Review recent inlet H2S trends and total treated volume. Confirm that pumps, injection quills, controllers, and chemical supply are operating as intended. For vessels, inspect differential pressure, flow distribution indicators, liquid carryover, bed condition, and the timing of prior media changes.
If the system is capacity-limited, changeout, regeneration, or a temporary increase in treatment rate may be necessary. If contact time is the constraint, adding chemical alone may have diminishing returns. A revised injection location, static mixing, different chemistry, larger contact volume, or revised operating conditions may be the more effective correction.
The same principle applies to a fixed bed that is channeling. Replacing media without addressing distributor performance or vessel loading practices may simply repeat the early-breakthrough pattern. Field diagnosis should focus on the mechanism, not only the symptom.
Preventing H2S Breakthrough Before It Reaches the Outlet
Prevention starts with designing around variability rather than average conditions. Inlet H2S concentration, flow, and liquid content should be evaluated across normal and upset scenarios. Treatment capacity should be based on the outlet requirement and the consequences of an excursion, not solely on the lowest-cost chemical or smallest vessel footprint.
Continuous or frequent monitoring gives operators time to act before specifications are exceeded. Tracking inlet and outlet H2S together with chemical injection rate, flow, pressure, temperature, and differential pressure creates a more useful operating picture than any single measurement. Trend changes often reveal declining capacity, changing sour load, or mechanical issues early.
For liquid scavenger programs, optimization should include dose verification, injection-point review, mixing assessment, residence-time confirmation, and chemistry selection. Different scavengers behave differently in dry gas, wet gas, crude oil, produced water, condensate, and multiphase systems. A product that performs well in one service may not be the most efficient choice in another.
For solid media systems, planned changeout intervals should be tied to actual consumption and performance data. A calendar-based replacement schedule can be conservative in steady service and dangerously late in variable service. Monitoring the breakthrough curve and reviewing vessel utilization supports better decisions on media inventory, maintenance windows, and contingency capacity.
Reliable logistics are also part of breakthrough prevention. A properly engineered chemical program cannot protect operations if product delivery, media availability, tote changeout, pump maintenance, or field service response falls behind the operating schedule. Q2 Technologies approaches sulfur treatment as an integrated field program, combining application-specific chemistry with monitoring, optimization, and supply support.
The Cost of Waiting for a Full Breakthrough
It is tempting to operate treatment assets until the outlet is clearly out of specification. That approach may maximize apparent chemical or media utilization, but it can increase total operating risk. The final portion of capacity is often the least predictable, particularly when inlet conditions fluctuate.
A more disciplined approach establishes action thresholds below the maximum allowable outlet concentration. These thresholds give the operations team time to verify the trend, prepare replacement media or chemical, adjust treatment conditions, and protect downstream equipment. The proper margin depends on the analyzer response time, system residence time, treatment capacity, and consequence of failure.
H2S breakthrough is best managed as a leading operational indicator, not a surprise event. When outlet H2S starts to move, the valuable question is not simply how much treatment capacity remains. It is whether the entire system – chemistry, contact, equipment condition, monitoring, and field execution – is still matched to the stream it is treating.
